First-run wizard
The first time you launch Hyveon, the app replaces its entire window with a five-step setup wizard. There is no sidebar, no dashboard, and no way to skip it — until the wizard finishes, the app has no Pulumi state backend to talk to and nothing else would work.
The header reads Welcome to Hyveon, with a subtitle showing
Step N of 5: <step title>.
On screens 768px wide or larger, a step-progress list is shown to the left of the wizard card, indicating which steps are completed, which is current, and which are upcoming. Below that width, the wizard renders as a single centered card, unchanged from narrower layouts.
| # | Step | What it does |
|---|---|---|
| 1 | Choose your cloud | Picks the cloud provider (AWS only, today) |
| 2 | Provision AWS access | Optionally has Hyveon create and rotate an AWS deploy principal for you via a guided CloudFormation flow, or lets you skip straight to supplying your own credentials |
| 3 | AWS credentials | Picks an AWS profile, or stores pasted access keys — skipped over automatically if step 2's guided flow already established a credential |
| 4 | Bootstrap AWS resources | Creates the S3 state bucket, S3 configuration bucket, and DynamoDB run-history table |
| 5 | Finish setup | Initializes the Pulumi stack against that new backend |
At the bottom of every step: Back (disabled on step 1), Start over, and Next. Step 5 has no Next — it has its own Finish setup button instead. Step 2 also has no shared Next button of its own (see that step's walkthrough below) except when Reconfigure has collapsed it to an already-completed summary. Start over is first-run only — see Starting over below.

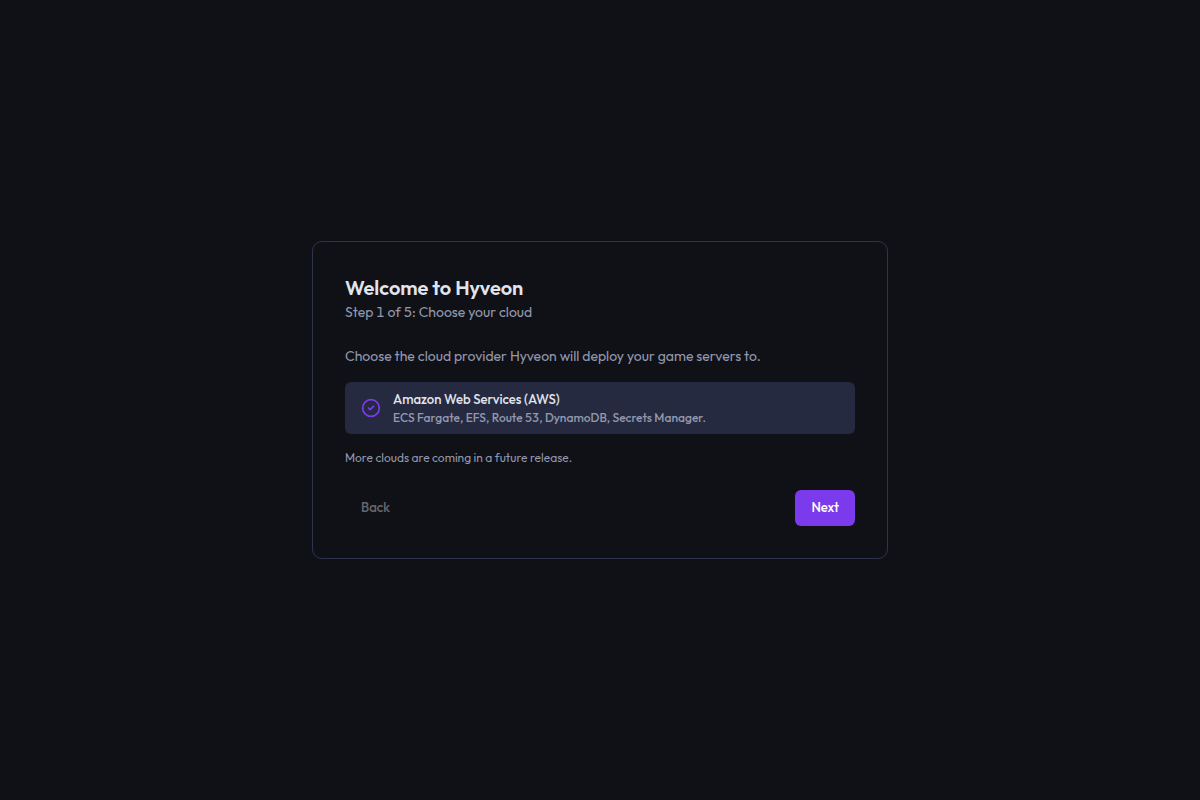

Step 1 — Choose your cloud
Choose the cloud provider Hyveon will deploy your game servers to.
One option today — Amazon Web Services (AWS), described as "ECS Fargate, EFS, Route 53, DynamoDB, Secrets Manager" — and it is pre-selected. A footnote reads "More clouds are coming in a future release."
Nothing blocks Next. Clicking it saves your choice; if that save fails, an error appears and you stay on the step so nothing silently drifts.
Step 2 — Provision AWS access
Hyveon can provision the AWS access it needs for you, or you can supply your own credentials.
This step drives its own advancement rather than using the shared Next button — the button is hidden for the entire step, except when Reconfigure has collapsed it to a completed summary (see Reconfigure below).
The initial choice
An AWS region field, plus two buttons:
- Continue with guided setup (the default path) — requires a non-empty region, then moves to the template screen.
- I already have credentials — skips straight to the credentials step (step 3) doing nothing else; no progress is recorded for this path since there is nothing to resume into.
The region field is a dropdown, not free text. It's populated from a static,
committed list of AWS regions grouped by continent — each continent is a
labeled group, and within it regions are sorted alphabetically by name. Every
item reads "{name} — {code}" (e.g. "US East (N. Virginia) — us-east-1");
selecting one sets the region to its code. A final, ungrouped Other (enter
manually) item swaps the dropdown for an auto-focused free-text field —
functionally identical to the old plain-text region input — so you can still
type any region code, including one AWS launched after the bundled list was
last regenerated. Validation is unchanged either way: Continue with guided
setup still requires a non-empty value, dropdown-selected or typed, and
shows an inline error otherwise.

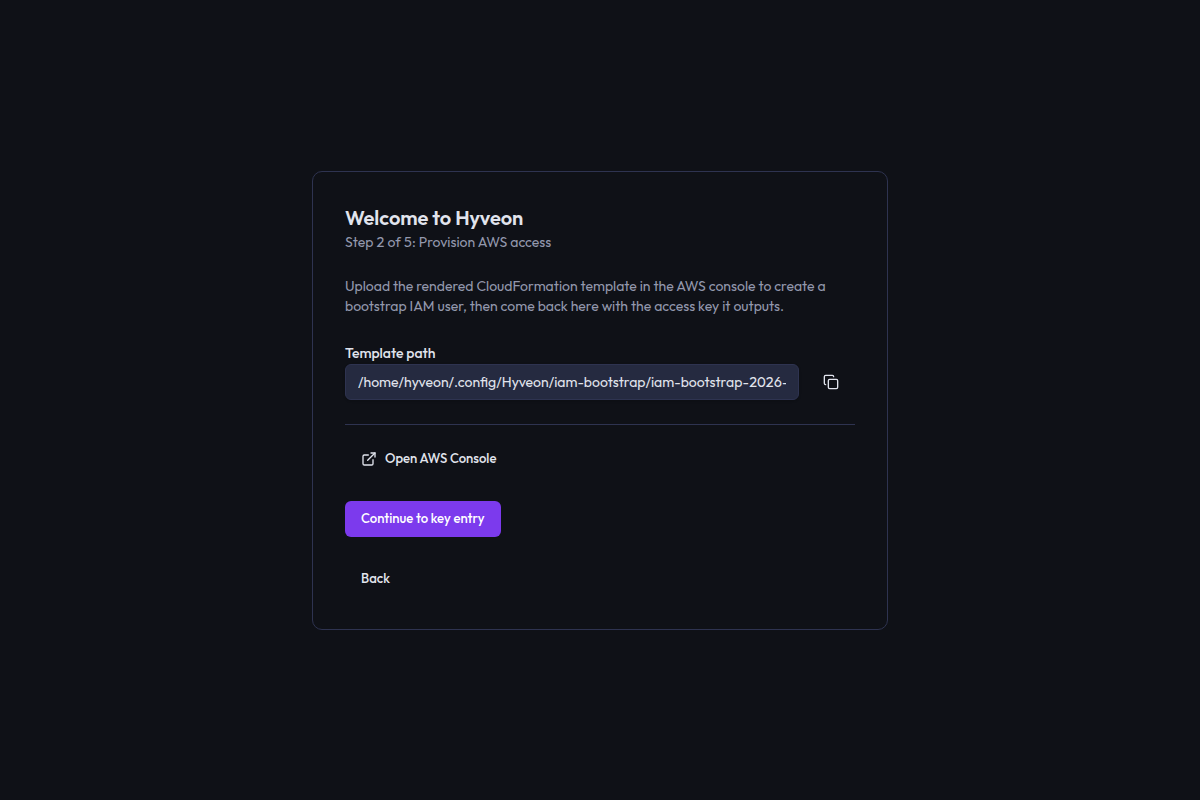

Guided setup: template and console handoff
Choosing guided setup renders iam-bootstrap.yaml, a CloudFormation template
that provisions a dedicated deploy-principal IAM user, to a path under the
app's userData directory, and shows:
| Element | Notes |
|---|---|
| Template path | Read-only field with an icon-only copy button, labelled Copy template path for screen readers (no visible text) |
| Open AWS Console | Opens the region-scoped CloudFormation "Create stack" console page in your default browser. If it can't launch a browser, the URL is shown as selectable text instead |
| Continue to key entry | Appears once the template is written; advances to the intake screen |
There is no "reveal in file manager" action here — only the copy-path button. Upload the file yourself using "Upload a template file" on the console page, then come back for the access key the stack outputs.
Key intake and rotation
Paste the Access key ID and Secret access key from the CloudFormation stack's outputs and press Validate and rotate key. Hyveon then, in order:
- Verifies the pasted key with
sts:GetCallerIdentity. - Mints a brand-new access key for the same IAM user.
- Stores the new key in your OS keychain.
- Verifies the new key.
- Deletes the original (bootstrap) key.
The secret you pasted is held in memory only for this sequence — it is never written to disk or logged.
The bootstrap key pair is single-use: step 5 deletes it the moment
rotation completes successfully. If you re-paste it afterward — for example
after restarting guided setup from scratch, or reusing a key you had saved
somewhere — AWS correctly rejects it (InvalidClientTokenId, "The security
token included in the request is invalid"). That's expected; get a fresh key
by running through the CloudFormation stack again, or use Start over
(below) if the wizard itself looks stuck.
Two ways rotation can fail
| State | What you see | Recovery |
|---|---|---|
| Verification failed | An error message and a Retry rotation button | Retrying reuses the same in-memory bootstrap key — no need to re-paste anything |
| Deletion failed | An amber warning that the new key is already active but the bootstrap key is too, a direct IAM console link, and a Revoke now button | The new key is already your active credential; this state only needs the leftover bootstrap key cleaned up. Pressing Revoke now finishes the step the same as a clean rotation |
Resuming mid-flow
If you quit while a bootstrap key had been submitted but rotation had not settled, relaunching resumes directly onto the key-intake screen with a banner:
A bootstrap key was previously submitted, but rotation didn't finish before Hyveon closed. Re-enter the access key ID and secret access key from your CloudFormation stack's outputs to retry.
This resume always lands on the intake screen, whether or not a region was recoverable from previously-persisted settings — the intake screen has its own editable region field for exactly that case. This is deliberate: falling back to the region screen instead would silently regress your persisted progress back to square one the next time you clicked "Continue with guided setup."
Quitting at the template or console-handoff point instead resumes onto the template screen, recovering your region from previously-persisted settings; if none is recoverable, this resume lands back on the region screen with a note asking you to re-enter it — there is no in-flight bootstrap key yet at this point, so nothing is lost by starting the region/choice screen over. Unlike the resume caveat below (which only restores the wizard's step pointer), this step's own progress persistence is granular enough to resume into the exact sub-screen you left — not just "this step in general."

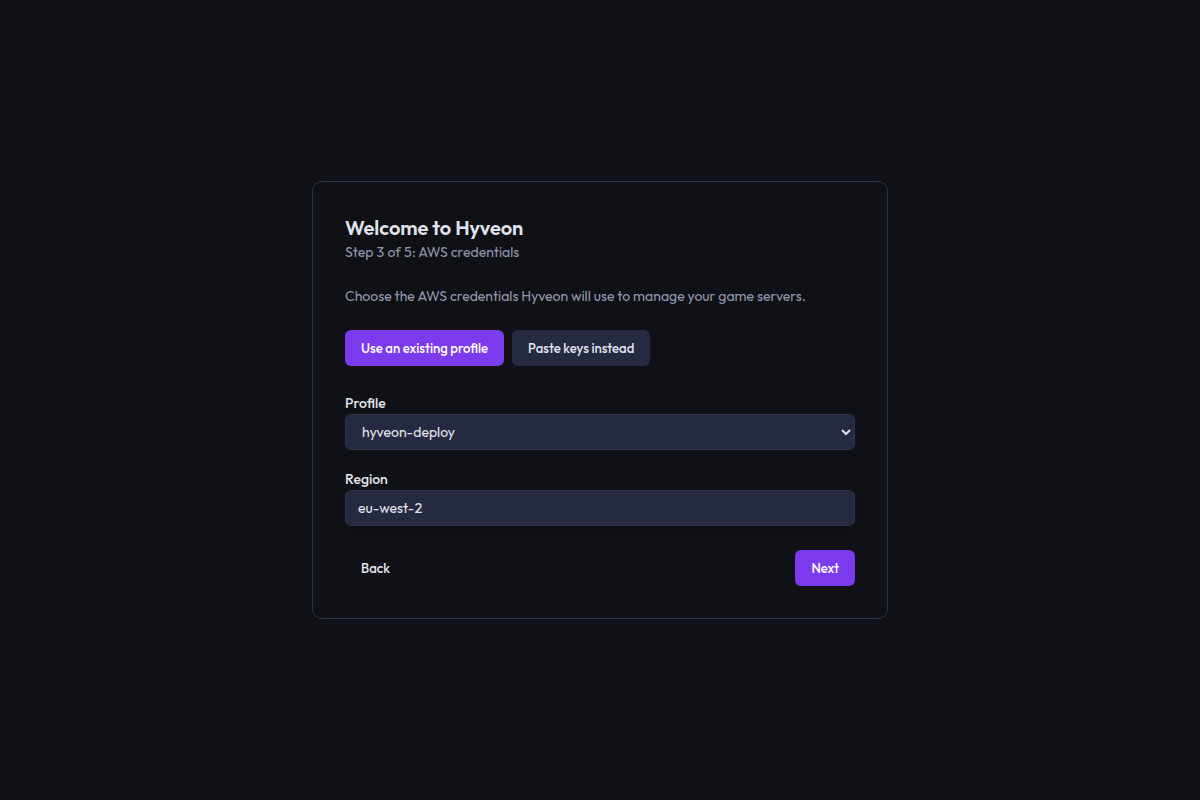

Step 3 — AWS credentials
Choose the AWS credentials Hyveon will use to manage your game servers.
If step 2's guided setup already established a credential, this step skips its normal form entirely and shows a resolved summary instead:
✓ AWS account (guided setup) ·
<region>
with a Switch to a different source button that falls back to the normal picker/paste form below — nothing from guided setup is discarded by pressing it, it only changes which source your active configuration points at.
Otherwise, two modes, chosen with a pair of toggle buttons.
Use an existing profile (default)
The app reads your AWS CLI config and lists the profiles it finds.
| Field | Notes |
|---|---|
| Profile | Dropdown, placeholder Select a profile… |
| Region | Text, placeholder us-east-1. Auto-filled from the selected profile's own configured region, and freely editable |
While the profile list loads you see "Loading AWS profiles…". If there are none:
No AWS CLI profiles found on this machine. Use "Paste keys instead" below.
Paste keys instead
| Field | Type |
|---|---|
| Access key ID | Text |
| Secret access key | Password |
| Region | Text, placeholder us-east-1 |
Press Save credentials. The keys are encrypted with your operating
system's keychain and stored under a profile named hyveon-pasted; on success
the step shows Saved as profile "hyveon-pasted".
Editing any of the three fields after saving clears that confirmation, so you must press Save credentials again before you can continue. This is intentional — it stops you advancing with keys you typed but never committed.
If your OS keychain is unavailable, the save is refused rather than falling back to plaintext:
Cannot save pasted AWS credentials: the OS keychain (safeStorage) is unavailable. Pasted keys are never stored in plaintext — pick an existing AWS CLI profile instead.
What blocks Next
- Profile mode: a profile must be selected and the region must be non-empty.
- Paste mode: Save credentials must have succeeded and the region must be non-empty.
The region is mandatory in both modes because Pulumi's self-managed S3 backend has no region default to fall back on.

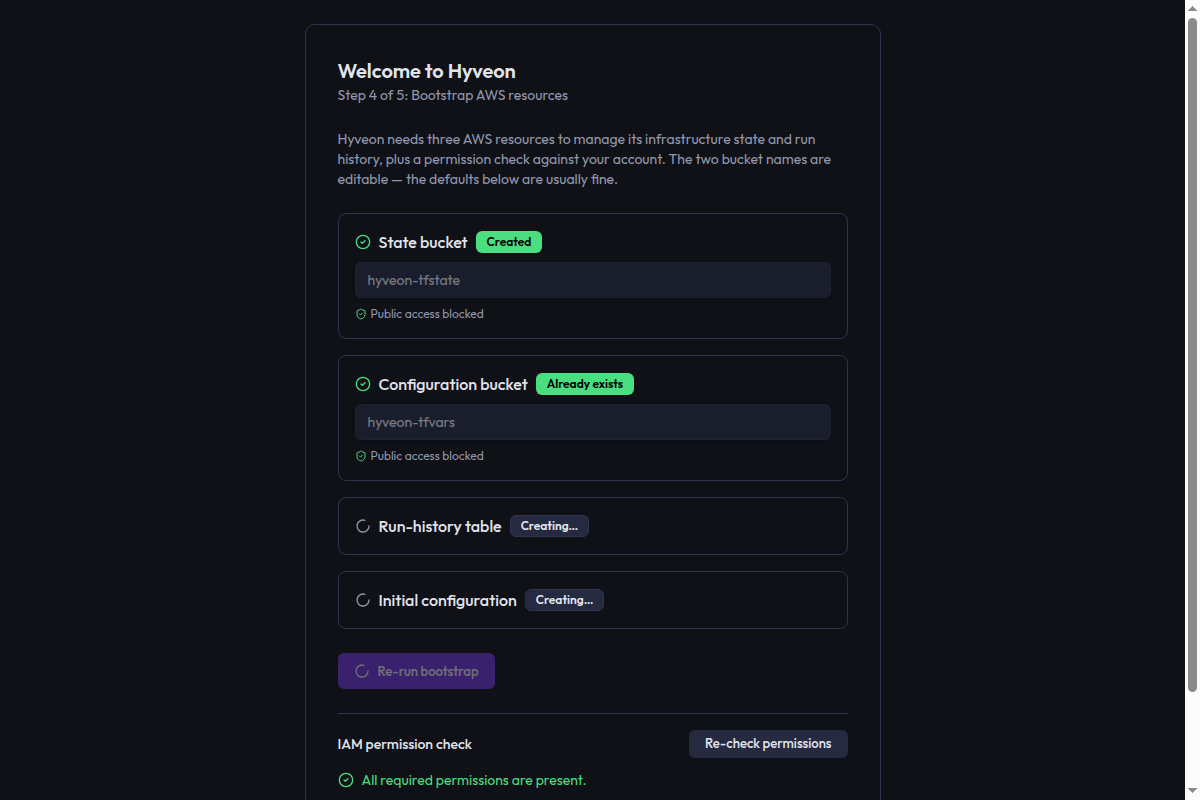

Step 4 — Bootstrap AWS resources
Hyveon needs three AWS resources to manage its Pulumi state and run history, plus a permission check against your account. The two bucket names are editable — the defaults below are usually fine.
| Resource | Default name | What it is |
|---|---|---|
| State bucket | hyveon-tfstate | S3 bucket, versioning enabled, AES256 encryption — Pulumi's self-managed backend reads/writes state here directly; there is no separate lock table (the DIY S3 backend locks via objects in this same bucket) |
| Configuration bucket | hyveon-config | S3 bucket, versioning enabled, non-current versions expire after 90 days, AES256 encryption |
| Run-history table | hyveon-runs | DynamoDB table (pk/sk keys, status-index GSI, point-in-time recovery) recording every plan/apply/destroy run — created here, not by Pulumi, so the very first plan/apply cycle of a fresh install has somewhere to record itself before any deploy has ever succeeded. Not name-editable at this step (see below) |
| Initial configuration | — | Seeds an empty deployment-config.json object (empty gameServers, no hosted zone) into the Configuration bucket, idempotently — it writes only if the object is absent, never overwriting an existing one. Without this, a fresh install has no config object yet, so Settings saves, adding a game, and Pulumi previews all fail. Not name-editable; it always targets whatever name is in the Configuration bucket field above it |
These are created with the AWS SDK directly — the wizard does not shell out to
any CLI for this step. The run-history table's name is not operator-editable
here: unlike the two buckets, it has no DeploymentConfig yet to hold a
custom name override (that only gets configured later, from the Settings
page), so it always uses the project-name default shown above.
Press Bootstrap AWS resources. The State bucket and Run-history table are created concurrently with the rest. The initial-configuration seed is chained after the Configuration bucket instead — it only starts once that bucket resolves to Created or Already exists, since it writes into it, and its row moves straight to Failed if the bucket step fails. A failure on one resource does not stop the others. Each row's badge moves independently:
| Badge | Meaning |
|---|---|
| Pending | Not attempted yet |
| Creating… | In flight |
| Created | Newly created by this run |
| Already exists | Found and left alone (re-configuration applied) |
| Failed | With the error message beneath the row |
Once a resource reaches Created or Already exists, its name field locks (the run-history table's read-only row has no name field to lock, only its status badge). The button relabels itself to Re-run bootstrap, which is safe to press repeatedly — every resource's configuration is re-asserted on every run.
Common failures and how to recover:
| Message | Fix |
|---|---|
The bucket name "…" is already taken by another AWS account. Choose a different name. | S3 bucket names are globally unique. Edit the name (failed rows stay editable) and re-run |
Cannot bootstrap AWS resources: no region is configured. Complete the credentials step of the wizard first. | Go Back and finish step 3 |
What blocks Next: only the two S3 buckets must be Created or
Already exists — the run-history table's status is informational and
never gates progression (its own bootstrap failure is still surfaced, and is
worth resolving before configuring game servers, since plan/approve
against that table depend on it existing).
The IAM permission check is advisory
Below the resources is an IAM permission check section with a Check permissions button (it relabels to Re-check permissions afterwards).
This check never blocks Next, and it never runs on its own. You can complete the entire wizard without ever pressing it. It exists so you find out about a missing IAM action now rather than halfway through your first infrastructure apply.
It resolves your caller identity, then asks IAM to simulate every action in
the HyveonDeployAll policy against your principal. Three outcomes:
| Result | What you see |
|---|---|
| Passed | "All required permissions are present." |
| Missing | "Some permissions are missing. Paste the policy below into your IAM user's inline policy." followed by a ready-to-paste JSON policy containing exactly the denied actions, with a copy button |
| Warning | The reason the simulation could not run (for example, your principal cannot call iam:SimulatePrincipalPolicy), followed by the full list of actions to check by hand |
The full policy, and where to put it, is documented in the setup guide.

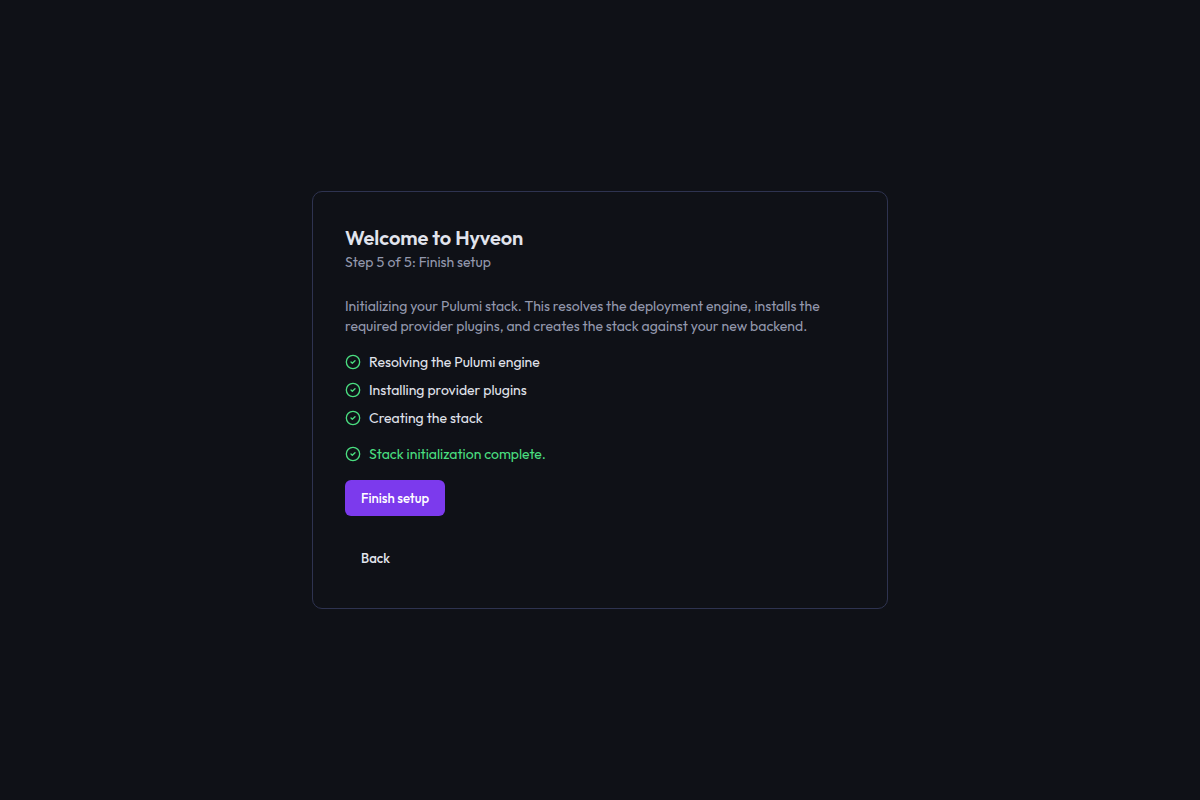

Step 5 — Finish setup
Initializing your Pulumi stack. This resolves the deployment engine, installs the required provider plugins, and creates the stack against your new backend.
This step starts automatically on arrival — there is no Start button. It
calls PulumiService.initializeStack, which needs no configuration from
earlier steps — it resolves the state bucket and region it needs from what
you already entered — and reports progress as three phases, rendered as a
checklist rather than a scrolling log (there is no verbose CLI-style
process output to show here):
| Phase | What it does |
|---|---|
| Resolving the Pulumi engine | Downloads and verifies the pinned Pulumi CLI engine on first use; the workspace construction that follows derives the stack's secrets passphrase from your authenticated AWS account ID rather than generating or storing one, so any machine with valid credentials for the same account reproduces the identical passphrase (once that stack has been re-encrypted to the derived value — see Infra program for the one-time legacy migration this happens through) |
| Installing provider plugins | Explicitly installs the @pulumi/aws provider plugin your deployment will need |
| Creating the stack | Runs a pulumi refresh against the brand-new, still-empty stack to prove the whole round trip — engine, backend, credentials, and plugin — actually works |
Each phase shows a pending circle, then a spinner, then a checkmark (or an ✕ if it failed).
| Outcome | UI |
|---|---|
| Success | Green "Stack initialization complete." |
| Failure | Red alert naming which phase failed and why, plus a Retry button |
Finish setup is enabled only once every phase succeeds. Clicking it marks setup complete and drops you straight onto the dashboard.
Resuming an interrupted setup
Progress is saved on every step change, so closing the app mid-wizard is safe. On relaunch you land back on the step you were on.
One deliberate exception: you never resume directly into step 5. If you quit while stack initialization was running, the app puts you back on step 4 (Bootstrap AWS resources) instead. Step 5 needs no renderer-supplied configuration to run — it resolves the state bucket and region it needs from already-persisted settings — but jumping straight to it on relaunch would still fire a real, write-side stack-initialization call before you have seen or confirmed anything on this visit, so the app clamps the jump at step 4 regardless. Landing on step 4 is safe because it reads your region from the stored settings, and the worst case is that you press Re-run bootstrap once more.
Two other resume caveats worth knowing:
- Only the step pointer is restored. Your region, selected profile and bootstrap resource names all fall back to their defaults on relaunch, even though they were saved. (The Reconfigure flow below does restore them.) Step 2 (Provision AWS access) is the one exception — see that step's own "Resuming mid-flow" section above, since guided setup persists more than just the step pointer.
- If saving progress fails, you simply start from step 1 next time. Nothing breaks.
Finishing the wizard deletes the resume file.
Starting over
Every first-run step (not shown in Reconfigure, which already has its own Cancel) has a Start over action next to Back. It's the recovery path for a wizard that's stuck or in a state you don't trust — a failed step that won't clear, or credentials you want to abandon and re-enter from scratch.
Confirming it:
- Deletes the resume file, so the wizard restarts at step 1.
- Clears your chosen cloud, credential source, and bootstrap resource names from durable storage — including any pasted AWS credentials.
- Does not touch any AWS resources already created (buckets, tables, the CloudFormation stack, a rotated IAM key) — those stay exactly as they are. It also does not touch an already-initialized Pulumi stack's own state or its secrets passphrase, since that belongs to infrastructure you may already be running, not to wizard progress. On most installs there's no stored passphrase to preserve at all — it's derived fresh from your AWS account ID every time the stack is opened, never written to disk. An install that hasn't yet completed its one-time automatic migration from an older, locally-stored passphrase is the one exception: until that migration runs, the stored value is still the only thing that can decrypt the existing stack's state, so Start Over leaves it in place rather than risk making that state undecryptable.
The window reloads once the reset completes.
Reconfigure
The same wizard is reachable later from Settings → Cloud Setup → Reconfigure. Use it to switch AWS profiles, change region, or re-point Pulumi at differently-named bootstrap resources.
It behaves differently in a few ways. The header reads Reconfigure Hyveon
— otherwise the step count and numbering (Step 1 of 5 through Step 5 of 5) are identical to first-run.
Most steps start collapsed. Choose your cloud, AWS credentials, and Bootstrap AWS resources always start collapsed to a summary box, since Reconfigure is only reachable once the wizard has completed once and every one of them already has a real answer on record:
✓ AWS credentials is already configured. [Edit]
Press Edit to expand that step's real form. Steps you never expand stay collapsed all the way through. (There is no way to re-collapse a step once expanded — press Cancel and start again if you change your mind.)
Provision AWS access starts collapsed only conditionally. Unlike its three siblings above, this step is pre-marked completed only when your currently-active AWS credential is the exact profile guided provisioning produces. A profile you picked manually, or keys you pasted, never pre-completes it — in that case it renders as a live step, offering guided setup or "I already have credentials" the same as first-run. Finish setup (step 5) is never pre-completed or collapsed either way — it has no standalone "answer" to summarize, and reaching it is itself the explicit re-run you asked for by clicking through to it.
Your existing answers are pre-filled. Unlike the first-run flow, the Reconfigure wizard reads your stored settings back: your cloud, your profile and region, and your bootstrap resource names — so the collapsed step summaries reflect what's actually configured, not first-run defaults. The final step itself needs none of this prefilled state (it resolves its own state bucket/region internally, the same way it does on first run) — the prefill only feeds the earlier steps' summaries and editable forms.
All edits are buffered into a single save on Finish. Advancing between steps persists nothing. Only when you press Finish setup are your changes written, and only for the steps you actually expanded — a step left collapsed is omitted entirely rather than re-submitted with possibly-stale local values. There is also a Cancel button next to Back, which discards the whole session.
One thing Cancel cannot undo: the Save credentials and Bootstrap AWS
resources buttons perform real work the moment you click them, exactly as in
the first-run flow. If you saved a pasted key it is still in your keychain,
and if you created an S3 bucket it still exists. Cancel only prevents your
active configuration from being pointed at them — since neither of those
two steps writes anything until commitReconfigureAnswers fires on Finish,
Cancel skipping that call is what "prevents" means here. Editing a collapsed
Provision AWS access step is the same story, only more consequential and,
unlike its two siblings, not reversible by Cancel at all: opening it and
running guided setup creates a real CloudFormation stack and rotates a real
AWS access key the moment you click through them, and the moment rotation's
verification succeeds, the rotated key is written as your active AWS
credential source directly — not through Reconfigure's buffered-save
mechanism, which only covers the other steps' answers. Cancelling afterwards
does not revert that credential switch, and does not delete the stack or
un-rotate the key either — all of it remains exactly as it is.
